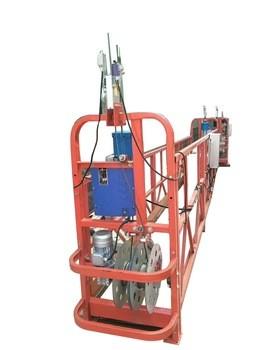

ZLP630/800/1000 suspended platform provide safer, easier and more efficient work platforms for your workers. They are ideal for plaster, painting, repairing, decoration, cleaning, elevator installing, loading heavy row materials to higher grounds, etc.It is also widely used in the construction works of big-size tank, bridge, dam and chimney.

Suspended platform is mainly composed by suspension mechanism,hoist,safety lock,electric control box,working platform.Its structure is reasonable and easy to operate.It can be assembly and disassembly accroding to the actual needs.The suspended platform is mainly used for refurbishment,decoration,cleaning and maintenance of high construction building.

ZLP800
Rated load:800kg
Lifting height: 50-200m
Lifting speed: 8.2m/min
Material: National standard Q235 steel/ Aluminum alloy
Color: Customized
Surface treatment: Paint/hot galvanized
Dimensiones: 7.5m×0.69m×1.18m 7.5m×0.69m×1.18m

Thickness of steel structure : 2.0mm/2.2mm
Suspension mechanism: Rated front beam overhang:1500mm

Rated suspension mass: 8KN×2Rated

The width of the cantilever beam to the ground is 1200mm

Maximum spacing of front and rear support is 4600mm

Front beam(L×W×H): 2300mm×75mm×75mm : 2300mm×75mm×75mm 2300mm×80mm×80mm Thickness:4.5mm 4.0mm2300mm×80mm×80mm Thickness:4.5mm 4.0mm

Middle beam(L×W×H)): 2300mm×88mm×88mm : 2300mm×88mm×88mm 2300mm×70mm×70mm Thickness:3.5mm 2300mm×70mm×70mm Thickness:3.5mm

Rear beam(L×W×H): 2300mm×75mm×75mm : 2300mm×75mm×75mm 2300mm×80mm×80mm Thickness:3.5mm2300mm×80mm×80mm Thickness:3.5mm
