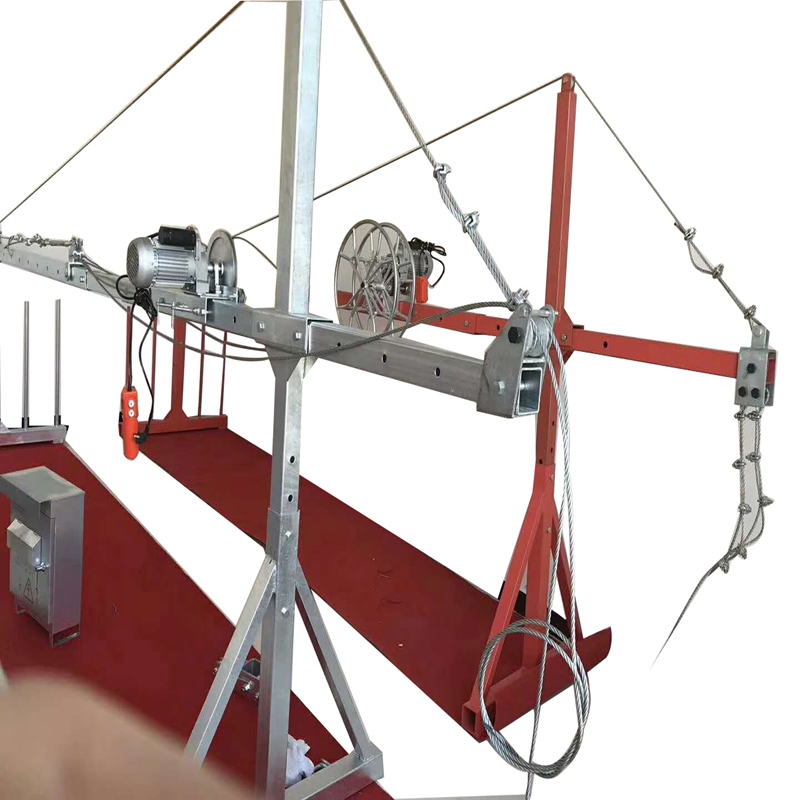

Electric scaffold platform zlp630 aluminum suspended platform For Construction Maintenance

Rated load:630kg
Lifting height: 50
200m
Lifting Lifting speed: 9.3m/minspeed: 9.3m/min

Material:National standard Q235 steel/ Aluminum alloy

Color: Customized
Surface treatment: Paint/hot galvanized

Dimensiones(L×W×H):):6m×0.69m×1.18m6m×0.69m×1.18m Thickness of steel structure : 2.0mm/2.2mm

Suspension mechanism: Rated front beam overhang:1500mm

Rated suspension mass: 8KN×2

The width of the cantilever beam to the ground is 1200mm

Maximum spacing of front and rear support is 4600mm

Front beam(L×W×H: 2300mm×75mm×75mm 2300mm×80mm×80mm

Thickness:4.5mm 4.0mm

Middle beam(L×W×H): 2300mm×88mm×88mm 2300mm×70mm×70mm

Thickness:3.5mm 2300mm×70mm×70mm

Rear beam(L×W×H): 2300mm×75mm×75mm

Thickness:3.5mm2300mm×80mm×80mm Hoist: LTD6.3Hoist: LTD6.3 , Brand: Luwang, Brand: Luwang

Motor power: 1.5kw Rated lifting force: 5KN

The turbine is produced in 94 copper.

Safety lock: LDF30, Brand: Luwang

Allow the impact force: 30KN

Angle adjustment range: 3°--8°

Applicable wire rope: φ8.3mm--φ8.6mm

The lock cylinder is stainless. The shell is processed with the Dacromet Technology.

Electric control box: Chint Electric originals

Voltage: customized With With waterproof, automatic limit, leakage protection, overheat protection, emergency braking, current overload protection and other functions

Wire rope: φ8.3mm

Breaking load: 6000KN Hot galvanized processing Type: 4×31SW
Safety rope: Strong, durable and elastic

With 4pcs Bottom Wheels+2pcs Wall Roller

Ningjin luwang Machinery Equipment Co., Ltd was founded in 2005, located in the Ningjin county which is know as “the hometown of hardware in China”. The geographical position is superior with convenient transportation. The company occupies 20000 square meters, and has more than 100 employees, including three senior engineers, 12 engineers, is scientific research, design, development, production and sales in one of the modern innovation enterprise.

Currently, the company’s main products are ZLP series of high-rise operating suspended platform, including electric suspended platform,  and a variety of special-shaped suspended platform of custom. The company also produce various types of hoists, electric control box, security locks and other accessories. The products manufactured in our company are designed in high quality and have mature performance quality, passing many complicated environment test. Compared with other companies’ products, our products are safer, more economic, more efficient, and easier operating.
