    High Rise Suspended Access Equipment 800kg Rated Load CE Certificated

    Ask Lasest Price
    Brand Name : Luwang
    Model Number : zlp800
    Certification : ISO9001 , CE
    Payment Terms : L/C, T/T
    Supply Ability : 1000sets/month
    Delivery Time : 10-25days
    • Product Details
    • Company Profile

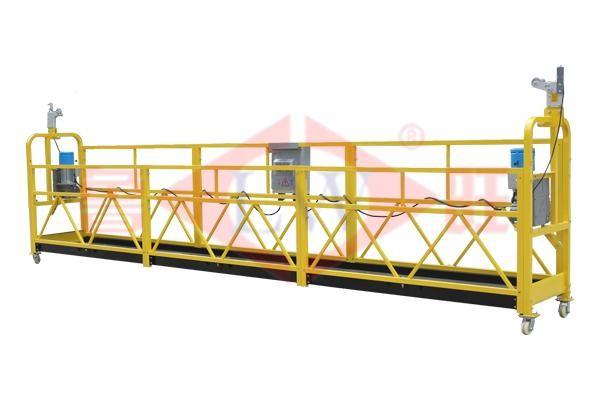

    High Rise Suspended Access Equipment 800kg Rated Load CE Certificated

    Best Price ZLP1000 Construction Suspended Working Platform,Construction Cradle


    Rated load:800kg
    Lifting height: 50-200m
    Lifting speed: 8.2m/min
    Material: National standard Q235 steel/ Aluminum alloy
    Color: Customized
    Surface treatment: Paint/hot galvanized
    Platform Dimensiones(L×W×H):7.5m×0.69m×1.18m
    Thickness of steel structure : 2.0mm/2.2mm

    Suspension mechanism: Rated front beam overhang:1500mm
    Rated suspension mass: 8KN×2
    The width of the cantilever beam to the ground is 1200mm
    Maximum spacing of front and rear support is 4600mm
    Front beam(L×W×H): 2300mm×75mm×75mm 2300mm×80mm×80mm Thickness:4.5mm 4.0mm
    Middle beam(L×W×H): 2300mm×88mm×88mm 2300mm×70mm×70mm Thickness:3.5mm
    Rear beam(L×W×H): 2300mm×75mm×75mm 2300mm×80mm×80mm Thickness:3.5mm
